Long. Drive Timing Belt, RoHS

2399451-ROHS
2399451
New
X-Ray
Definium 8000
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Total
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Open Ended Belt
  • High Wear and Tear Resistance
  • Steel Reinforced Polyurethate Material
  • Reduces Slipping

Otras opciones de compra


Condition: Used

Descripción del producto

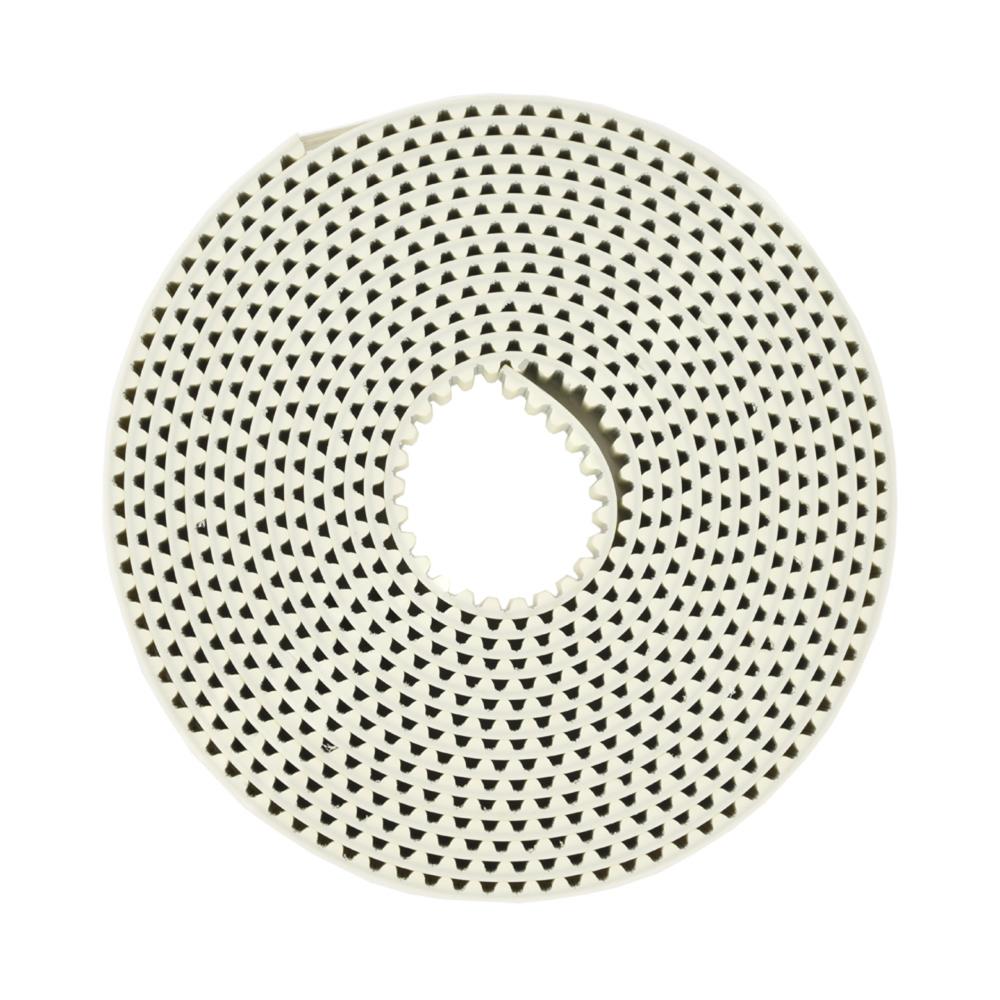

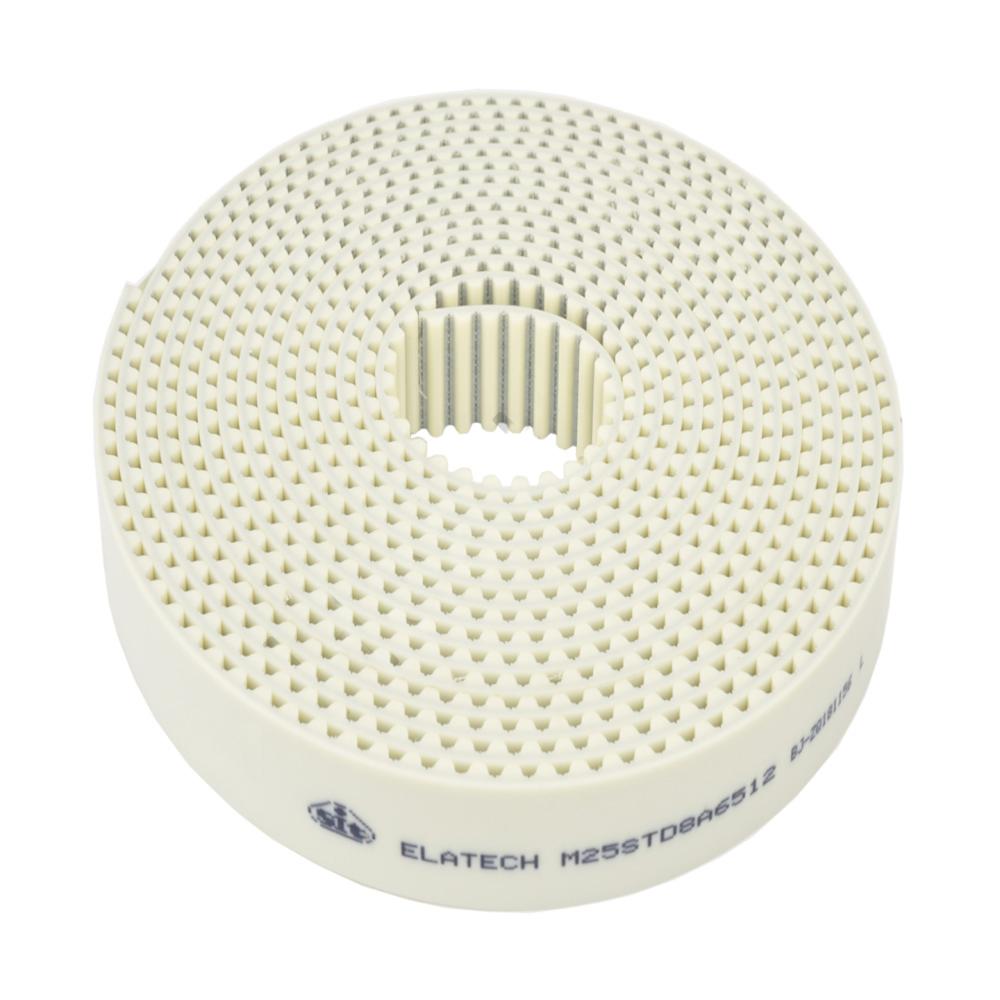

This 6512 mm open ended toothed drive belt is a flexible belt with teeth moulded onto its inner surface which are used to transmit motion between two or more shafts coupled with toothed pulleys that are often parallel to each other. This drive belt is made up of strong Polyurethate material and comes with steel reinforcements that strenghten the overall load transmission capability of the belt. The 25 mm wide belt comes with 8 mm tooth pitch and is designed for good torque transmission. The teethed profile of the belt reduces slipping and provides accurate and precise motion transmission. The tooth design of this belt substantially improves stress distribution and allows extra high loading. The molded teeth enter and leave the sprocket grooves smoothly with negligible friction—functioning in much the same way as teeth on a gear without making much noise. This open ended drive belt comes in white color and can be used in bridge belt anchor assemblies of GE's X-Ray Systems.

  • Características adicionales

    • Improves Stress Distribution
    • Strong and Durable
    • Reliable Operation
    • White Color
    • RoHS Compliant

    Artículo equivalente:

    Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente

    Artículo equivalenteDetalles de parte
    2399451
