MCB-SSBTANDEM

5371246
New
Molecular Imaging and Nuclear Medicine
Brivo 615
GE HealthCare
GE HealthCare – Imaging/UL/PCS Parts
GE HealthCare
Total
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Características

  • Enhanced durability
  • Perfect fit and finish for the assembly
  • Does not contain burrs or sharp edges
  • Part painted after a basic sanding

Descripción del producto

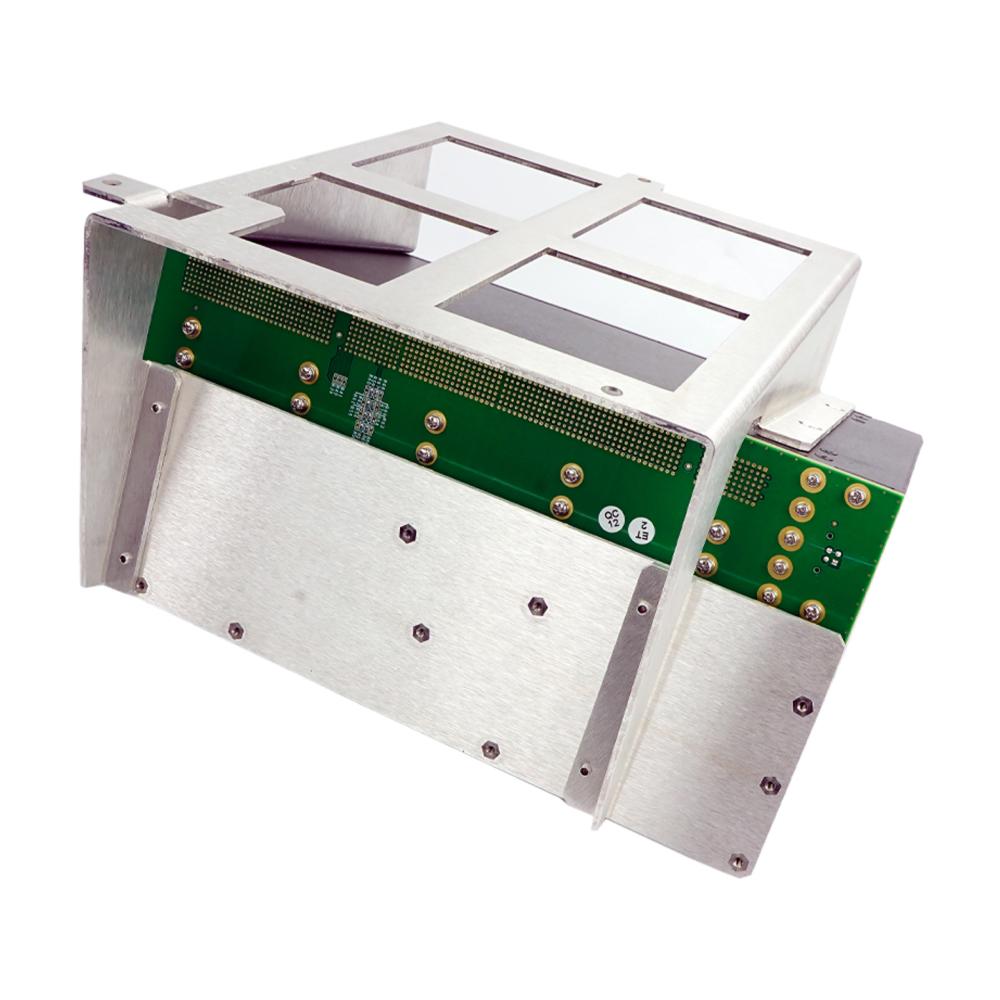

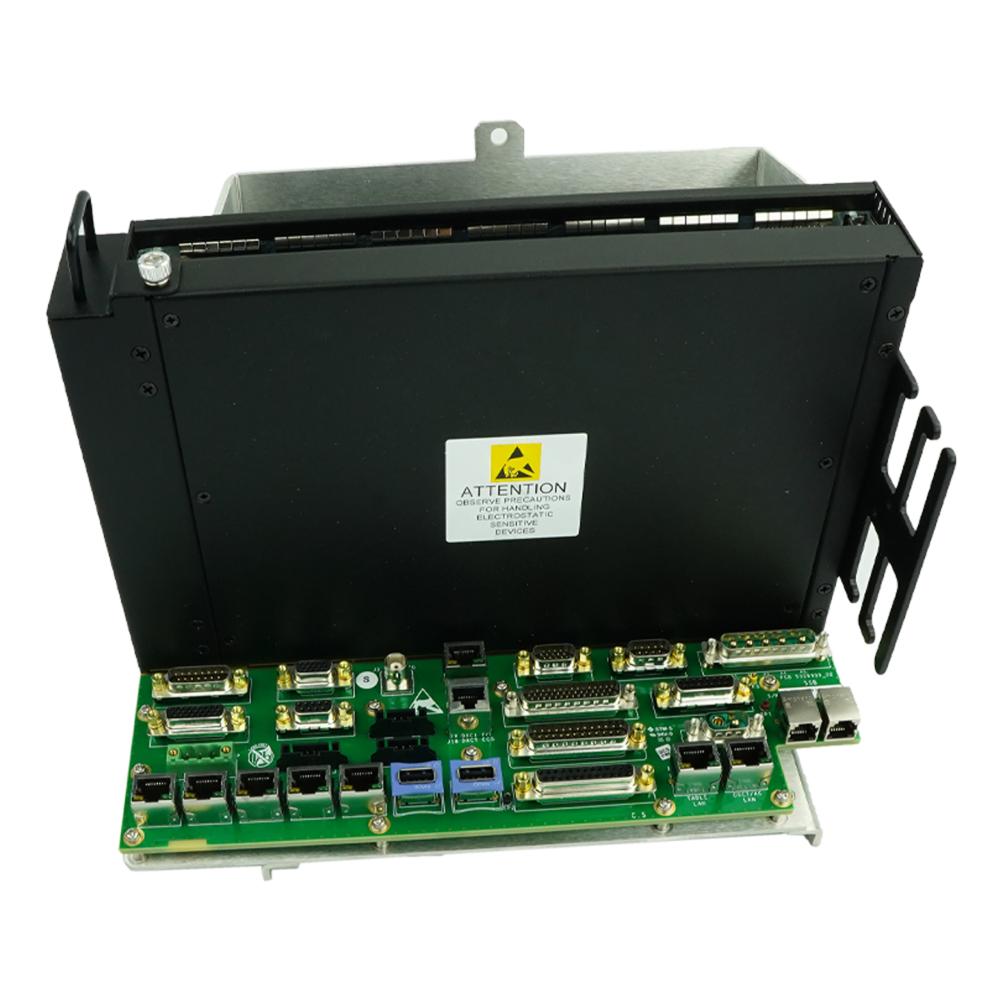

The MCB Chassis includes the SSB(Stator Switch Board), Enclosure for single CPCI card, Cooling replaceable fan unit. The chassis will host a 6U CPCI card (named MCB – Motion Control Board). The card has a CPCI form factor and it utilizes 2 mm connectors. A Protective Earth (PE) Ground (i.e. chassis ground, hereby defined as “shield”) will cover the entire backplane, on the external layers (CS & PS). It is defined in the net-list as GND_CHASSIS. On all other layers, a frame along the perimeter is connected to the shield using via each 5mm. The shield is connected to external shield points as much as possible. The external shield consists of a metal plate/structure. The chassis will not include a power supply. The chassis shall include means for mounting it to the system as will be defined in the SSB (Backplane) Mechanical Interface Drawing. The mounting shall guarantee conductive contact to the system. The backplane will contain connectors. The chassis shall include a removable fan tray, to be mounted in the enclosure. The backplane will have a Copper strip & gasket, to which the MCB metal enclosure is connected and sealed. The GE product is an innovation and fit well into versatile customer needs. The part is diligently designed for superior performance and reliability. It is securely packed inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.

  • Características adicionales

    • Good heat resistance and impact strength
    • Resistant to acids, bases and cleaning agents
    • Easy to install
    • Meets international standards for safety requirements
    • ROHS compliant component
